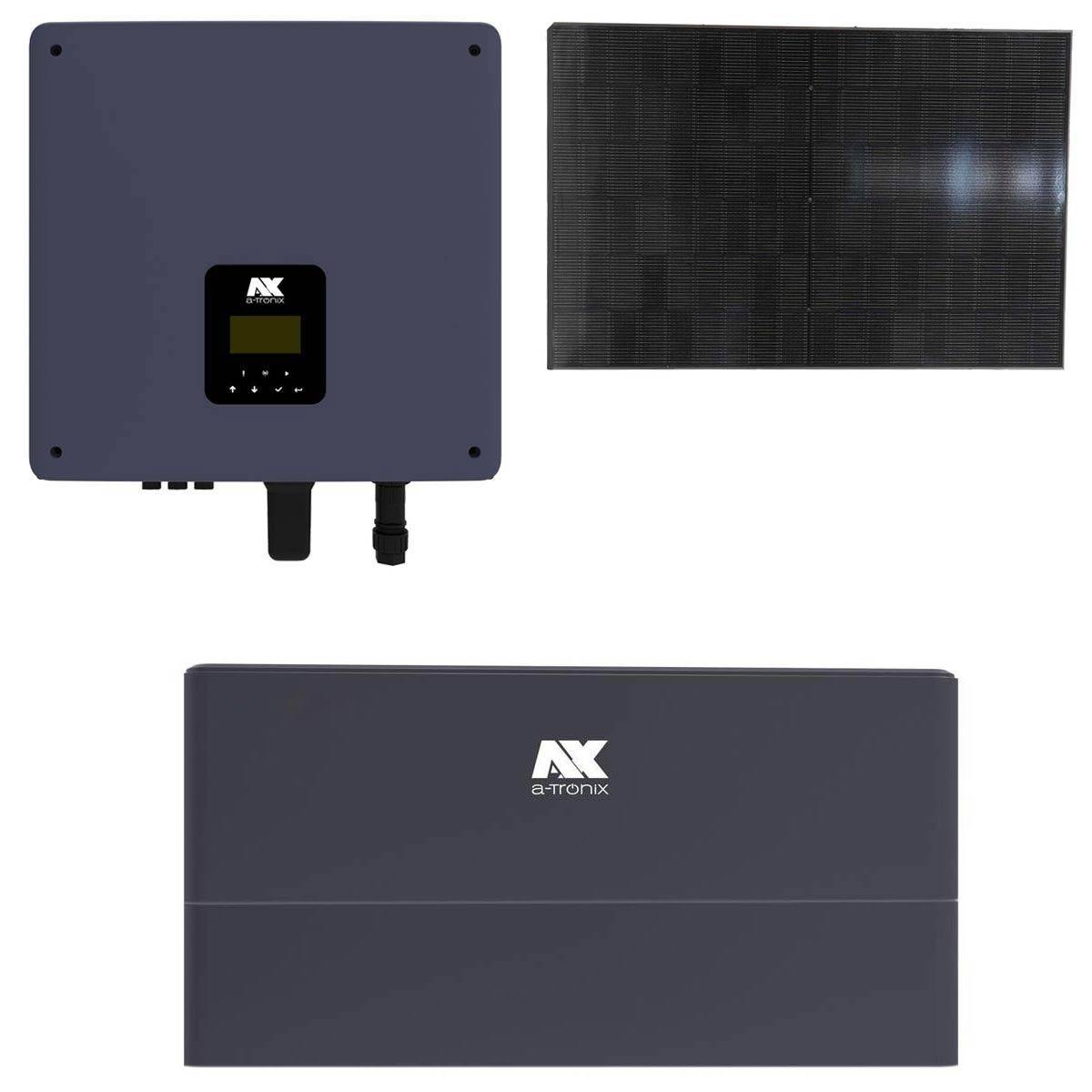

a-TroniX 3 kWp Complete PV System with Glass-Glass Solar Panels and 5.76 kWh Battery Storage

a-TroniX 3 kWp Complete PV System with Glass-Glass Solar Panels and 5.76 kWh Battery Storage

This set allows you to install a complete photovoltaic system, enabling you to generate, store, and use your own solar energy while reducing dependence on the grid and energy market fluctuations.

3 kWp solar capacity with high-efficiency panels

The system includes 7 × Sunpro TopCon 430W Full Black glass-glass solar panels, providing a total installed capacity of approximately 3 kWp.

Each panel delivers up to 430 W and features a durable glass-glass construction that improves long-term performance and reliability. The module efficiency reaches up to 22%.

The monocrystalline cell structure ensures high efficiency, while the robust design provides strong resistance to temperature variations, humidity, and mechanical stress.

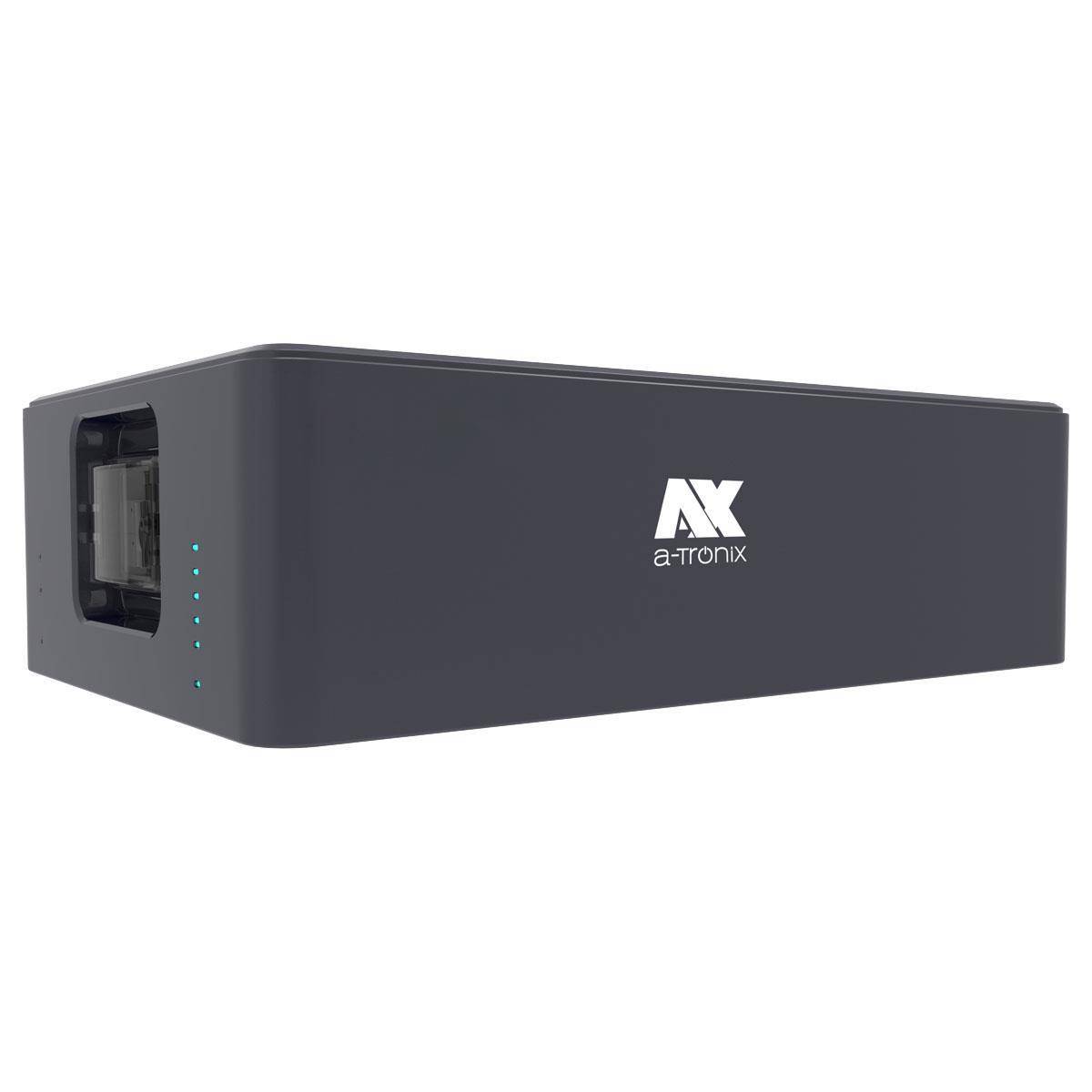

Integrated a-TroniX battery storage

The included a-TroniX battery system offers a total capacity of 5.76 kWh (5,760 Wh), composed of two 2.88 kWh high-voltage battery modules.

This configuration is suitable for a household of up to five people, assuming an annual consumption below 7,000 kWh, excluding high-consumption devices such as electric vehicles or heat pumps.

Hybrid inverter performance

The system is powered by the a-TroniX AX 3.0kW single-phase hybrid inverter, designed to increase self-consumption and improve energy independence.

• Maximum output power: 3,000 W

• European efficiency: 95.26%

• Compatible with PV systems up to 6 kWp

• 2 MPPT trackers for optimized performance

Connectivity and interfaces

The system supports communication with other devices via:

• RS485

• DRM

• Ripple Control

• USB

• WiFi

• LAN (optional)

• 4G (optional)

What’s included in the package

• 1 × a-TroniX AX 3.0kW single-phase hybrid inverter

• 1 × a-TroniX AX 2.88 kWh high-voltage battery with BMS

• 1 × a-TroniX AX 2.88 kWh high-voltage battery module

• 7 × Sunpro TopCon 430W Full Black glass-glass solar panels

A compatible smart meter is included in the package.

Please note: Solar cables required for installation are not included, as the required length depends on the specific setup.

Technical specifications

• Battery technology: Lithium

• Phases: 1

• MPPT trackers: 2

• Output power: 3000 W

• Switching time: 20 ms

• Efficiency: 95.26%

• Total weight: 258.04 kg

• Dimensions (L × W × H): 1722 × 1134 × 30 mm
