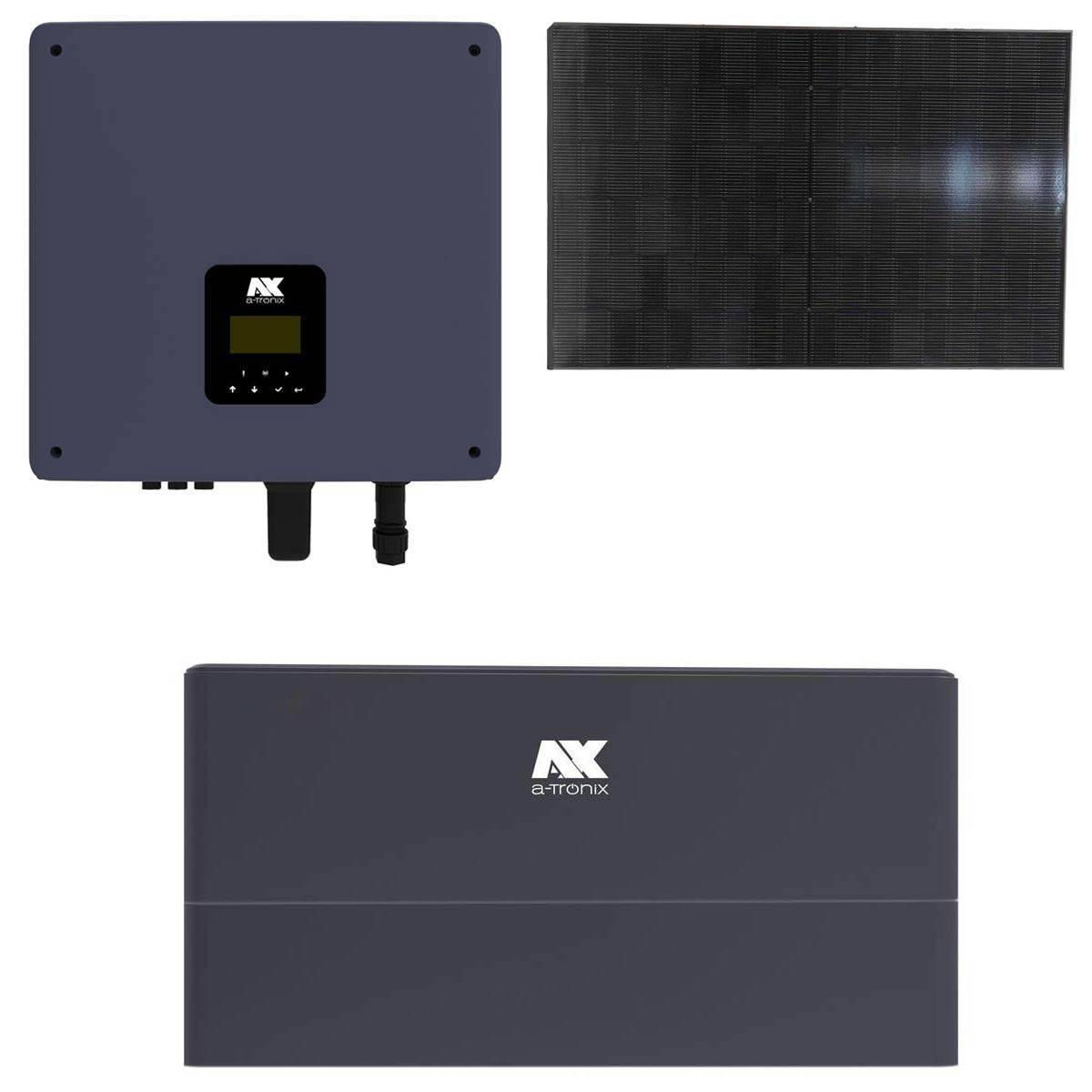

a-TroniX 3.7 kWp Complete PV System with Glass-Glass Solar Panels and 5.76 kWh Battery Storage

a-TroniX 3.7 kWp Complete PV System with Glass-Glass Solar Panels and 5.76 kWh Battery Storage

This set allows you to install a complete photovoltaic system. It includes the essential components needed to generate, store, and use your own solar energy, helping you become more independent from the local grid and energy market fluctuations.

3.7 kWp solar capacity for your PV system

This bundle includes 9 × Sunpro TopCon 430W Full Black glass-glass solar panels, enabling you to build a photovoltaic system with a total capacity of 3.7 kWp.

Each panel delivers up to 430 W and features a glass-glass construction, which improves the overall performance of the solar system. The module efficiency reaches 22%.

The monocrystalline structure ensures high efficiency and performance, while the durable glass-glass design provides strong resistance to temperature changes, humidity, and mechanical stress.

AX 5.76 kWh: Modern battery storage system

The included battery storage system allows you to store the energy generated by your PV system for later use. You can then power connected devices as needed using stored solar energy.

The a-TroniX battery system has a total capacity of 5,760 Wh (5.76 kWh). The AX 5.76 kWh configuration is suitable for a household of five people, assuming an annual consumption below 7,000 kWh. High-consumption devices such as electric vehicles or heat pumps are not included in this estimate.

High-quality a-TroniX hybrid inverter

The AX 3.7kW is a hybrid inverter from a-TroniX that supplies connected devices with energy from the battery as needed.

• Maximum output power: 3,700 W

• European efficiency: 95.7%

The inverter is compatible with photovoltaic systems up to 7.68 kWp. The maximum usable solar power depends on the inverter’s output capacity, which is 3,700 W in this case.

It includes 2 MPPT trackers, ensuring optimal performance even with panels installed in different orientations.

Connectivity and interfaces

The system supports communication with other devices via:

• RS485

• DRM

• Ripple Control

• USB

• WiFi

• LAN (optional)

• 4G (optional)

Package contents

The bundle is supplied with a compatible smart meter.

Please note: Solar cables required for installation are not included, as the required cable length depends on the specific installation conditions.

Technical specifications

• Battery technology: Lithium

• Phases: 1

• MPPT trackers: 2

• Switching time: 20 ms

• Output power: 3700 W

• Efficiency: 95.7%

• Dimensions (L × W × H): 1722 × 1134 × 30 mm

• Total weight: 306.64 kg
