OSCAL PM200 Pro Foldable Solar Panel 200W – 23% Efficiency, IP67 Outdoor Ready

The OSCAL PM200 Pro is a high-efficiency 200W foldable solar panel designed for reliable energy generation in outdoor and off-grid environments. Built with advanced monocrystalline cells and durable ETFE coating, it delivers strong performance, portability and long-term durability.

Whether you're camping, travelling, using a portable power station or building an off-grid setup, this panel provides a dependable source of renewable energy.

What makes it different?

The PM200 Pro uses ETFE 6-layer lamination technology combined with monocrystalline silicon cells, achieving up to 23% conversion efficiency.

Step-by-step explanation:

• Standard panels: ~18–20% efficiency
• PM200 Pro: up to 23% efficiency
• Result: up to ~15–25% more energy production in the same sunlight conditions

This translates into faster charging times and better performance in less-than-perfect sunlight.

What can it power?

When paired with a compatible power station, it can generate energy for:

• Charging portable power stations
• Running small off-grid systems
• Keeping batteries topped up during travel
• Emergency backup power

Estimated daily production:

• Approx. 800–1000Wh/day in good sunlight (4–5 peak sun hours)
  Actual output depends on weather, angle and temperature.

Who is it for?

• Camping and outdoor users
• RV / van life setups
• Off-grid cabins and solar systems
• Backup energy users
• Anyone using portable power stations

When is it NOT enough?

• Powering large appliances directly
• Full home solar systems
• Continuous energy in poor weather conditions

This is a portable solar solution, not a full fixed installation.

Key benefits

High efficiency – up to 23% solar conversion rate.
Durable build – ETFE coating + 840D Oxford fabric.
Weather resistant – IP67 protection against dust and splashes.
Portable design – foldable, compact and easy to carry.
Wide compatibility – works with ~95% of power stations.
Plug & play – simple setup, no technical knowledge needed.

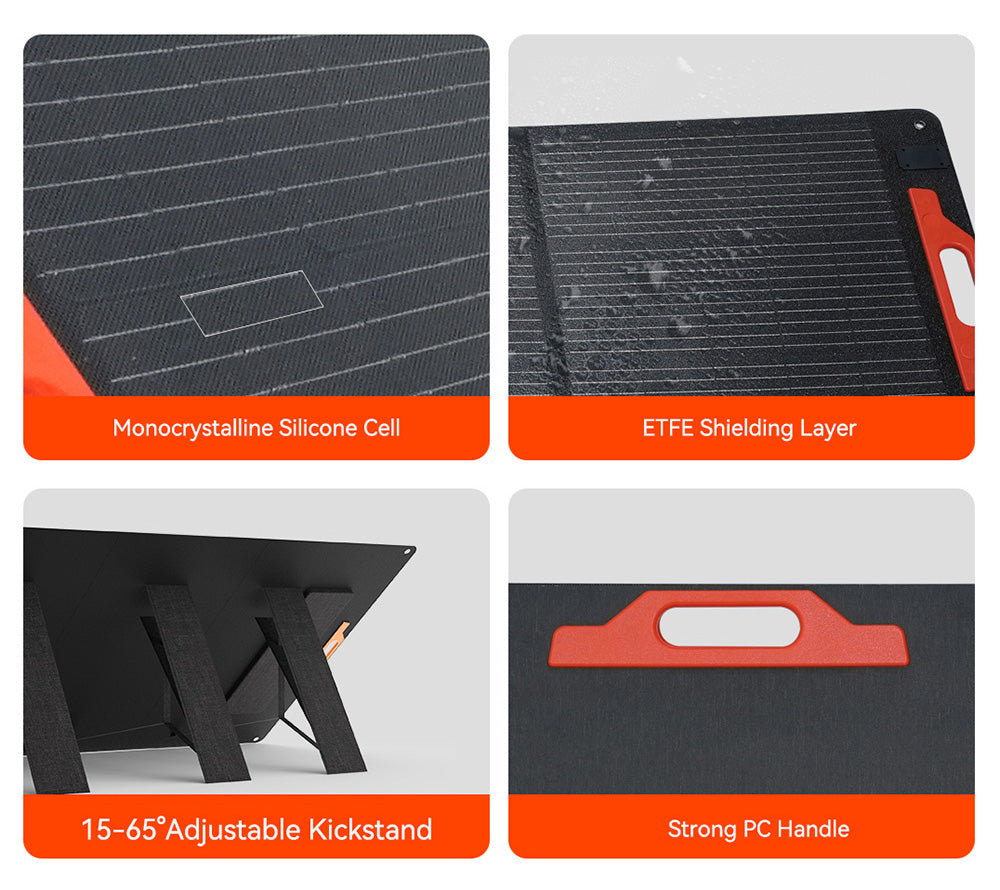

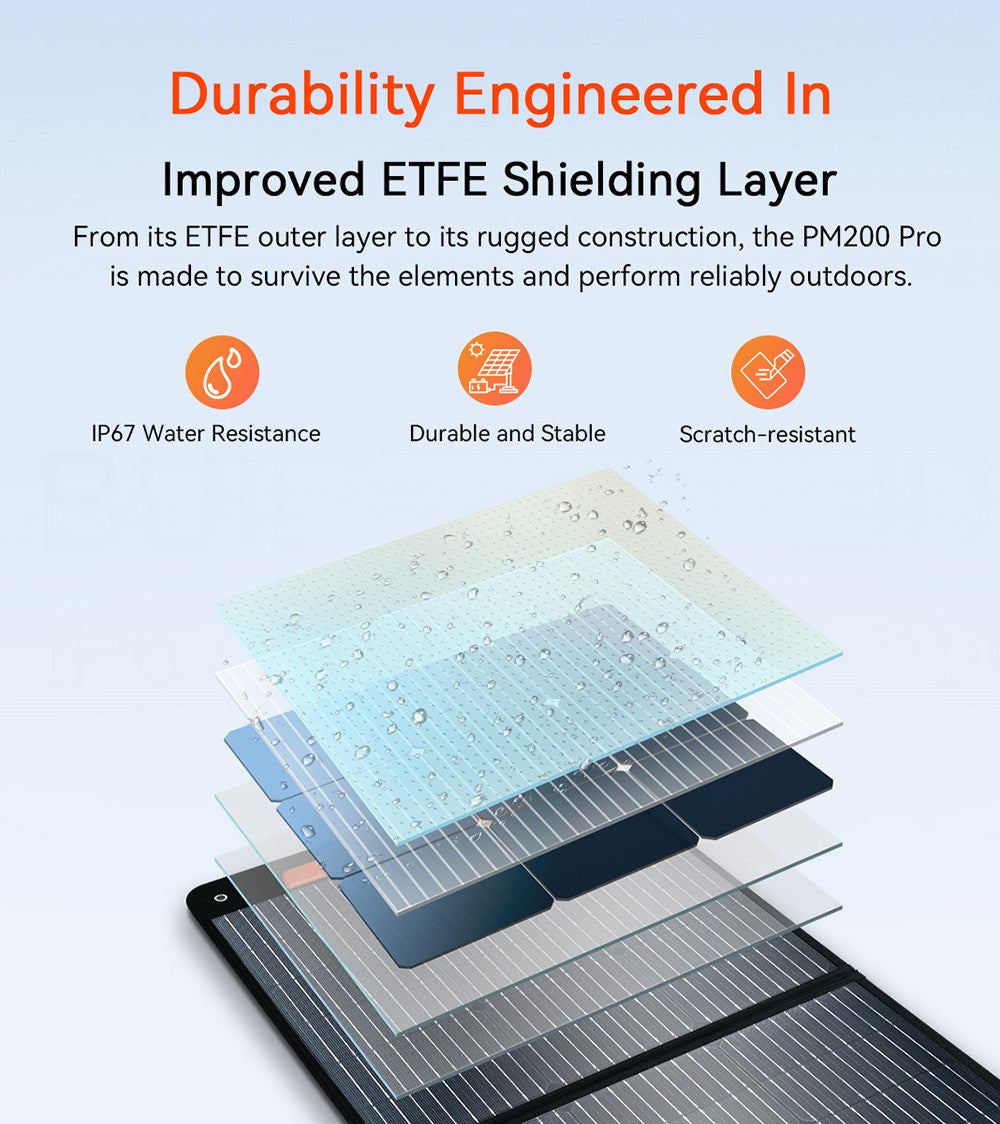

Build & durability

The panel is designed for outdoor conditions:

• ETFE surface for heat, UV and chemical resistance
• Oxford 840D backing for durability
• Scratch-resistant and moisture-resistant materials
• IP67 rating (dustproof + splash resistant)

Important: Not designed for heavy rain exposure or full submersion.

Compatibility

Includes MC4 connection and multi-adapter cable:

• MC4 (standard solar connection)
• 5-in-1 adapter (XT60, DC5521, DC7909, DC6530, Anderson)

Compatible with most portable power stations and 12V battery systems (controller required, not included).

Technical specifications

• Model: PM200 Pro
• Rated power: 200W
• Cell type: Monocrystalline silicon
• Efficiency: ≥23%

Electrical characteristics

• Nominal voltage: 18V
• Nominal current: 11.1A
• Open circuit voltage (Voc): 21.6V
• Short circuit current (Isc): 13.9A

Protection & durability

• Coating: ETFE
• Waterproof rating: IP67
• Operating temperature: -10°C to 65°C

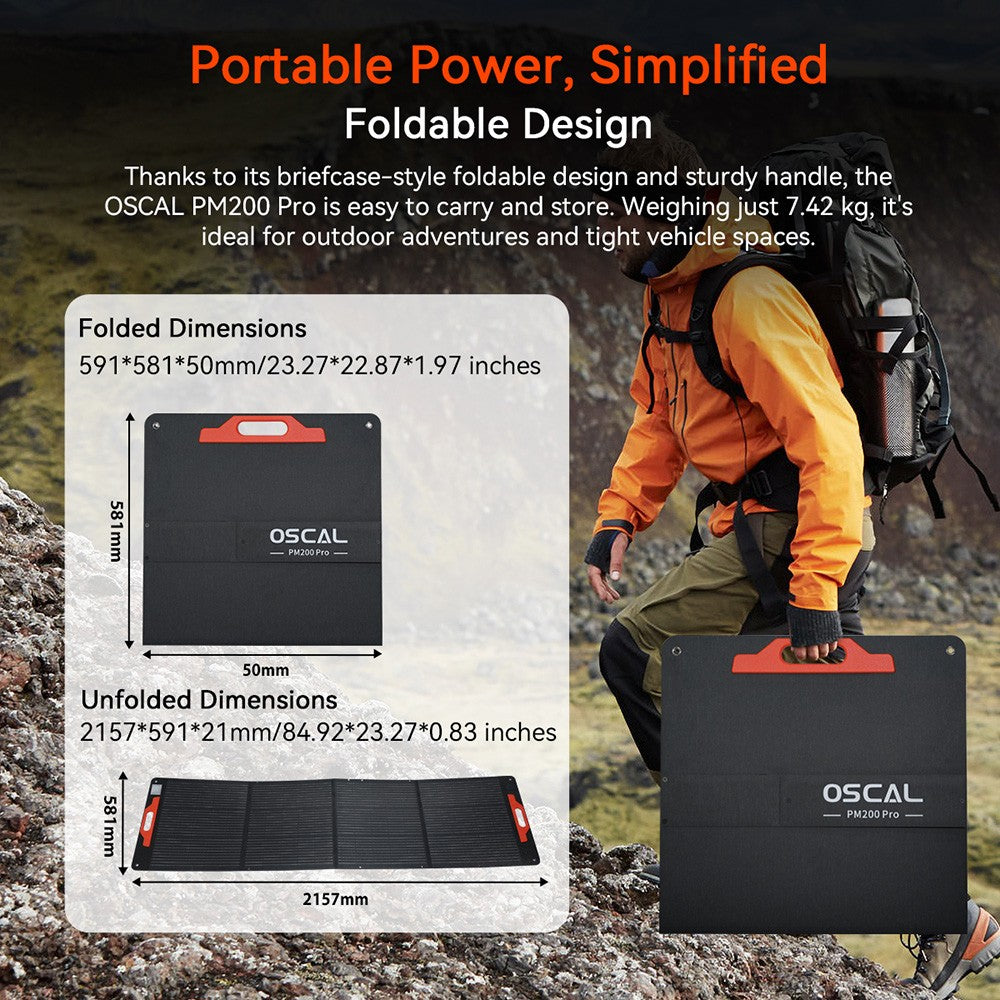

Dimensions & weight

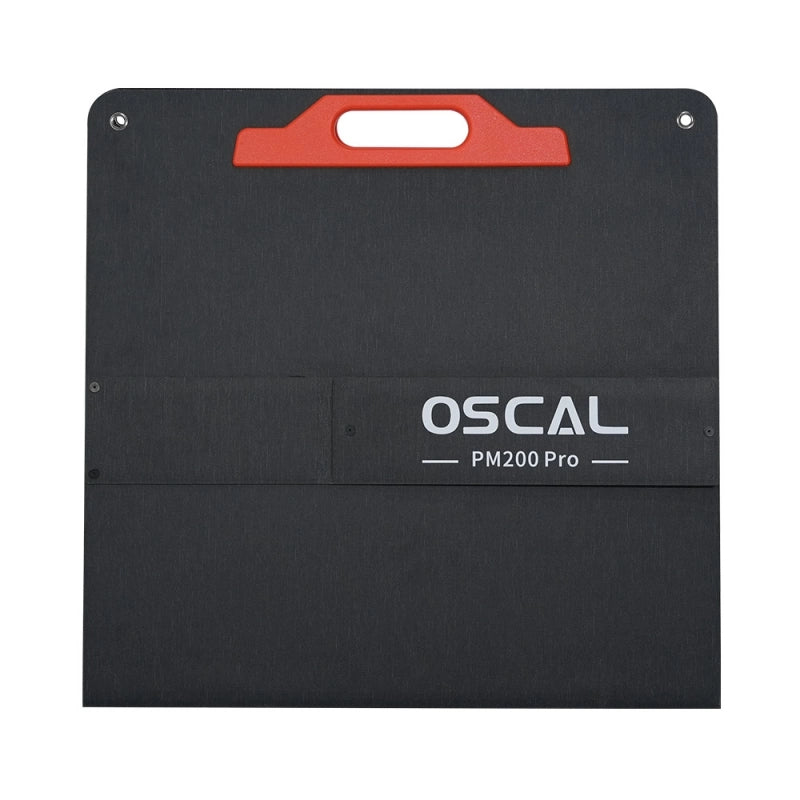

• Folded: 591 x 581 x 50 mm
• Unfolded: 2157 x 591 x 21 mm
• Weight: ~7 kg

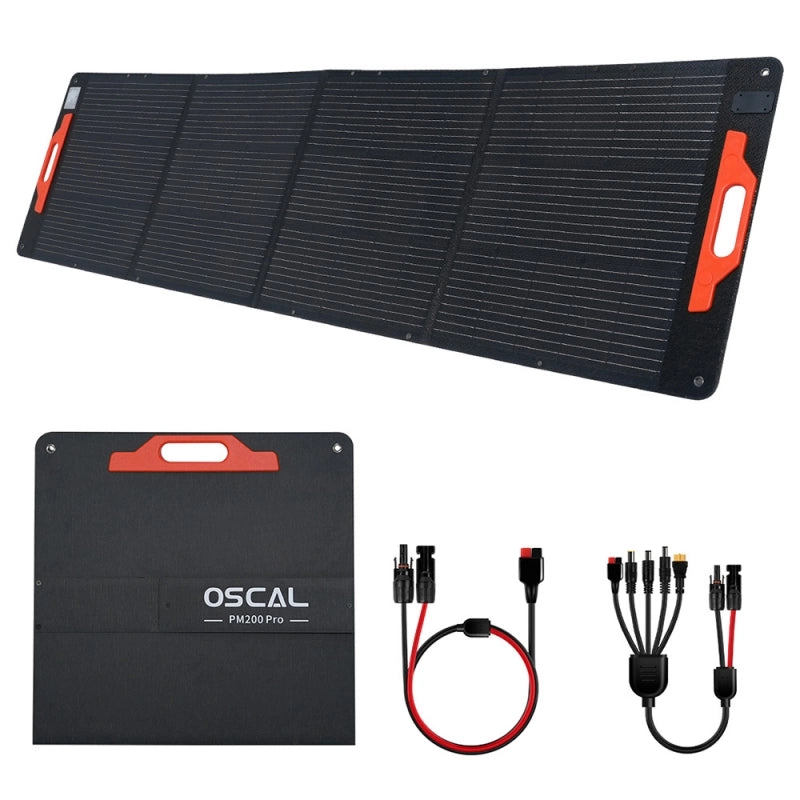

In the box

• 1 × OSCAL PM200 Pro 200W Solar Panel
• 1 × MC4 to Anderson cable
• 1 × MC4 to 5-in-1 cable (XT60 / DC5521 / DC7909 / DC6530 / Anderson)
• User manual
