Growatt SPH3000TL BL-UP 3kW Hybrid Inverter with 15.3 kWh Solar Battery Storage Set

Growatt SPH3000TL BL-UP 3kW Hybrid Inverter with 15.3 kWh Solar Battery Storage Set

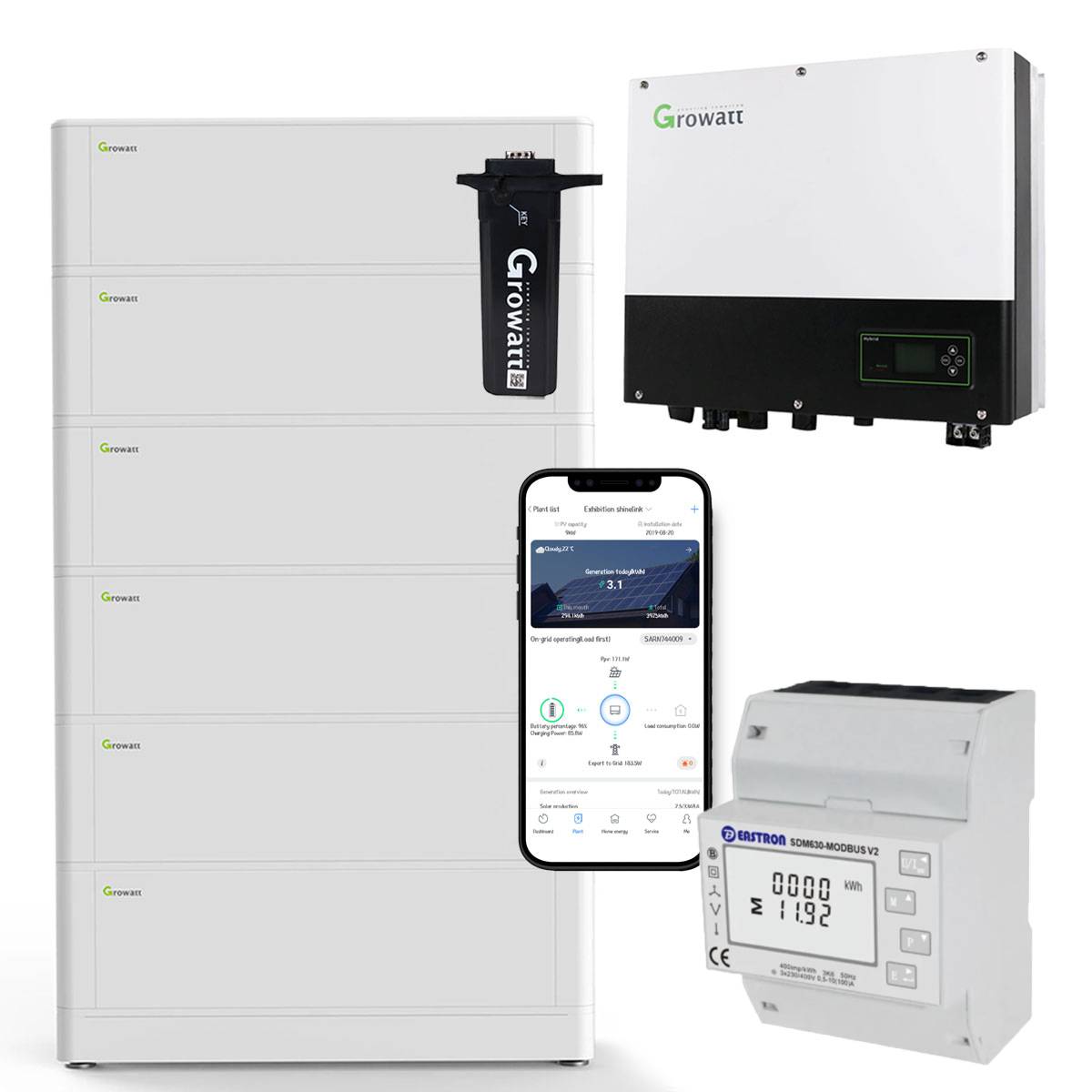

This bundle includes the following components:

• 1 × Growatt SPH3000TL BL-UP 3kW single-phase solar hybrid inverter

• 6 × Growatt ARK-2.5L-A2 low-voltage batteries for SPH inverter

• 1 × Growatt Smart Meter TPM-E (3-phase)

• 1 × Growatt ARK-2.5L-A1 base for low-voltage batteries

• 1 × Growatt ARK-2.5L-A1 low-voltage battery cable

Why choose the SPH3000TL BL-UP inverter

The SPH3000TL BL-UP hybrid inverter from Growatt increases self-consumption of solar energy and reduces reliance on the grid. It delivers a maximum output power of 3,000 W.

With a European efficiency of 97%, it ensures efficient and stable energy conversion.

The inverter is compatible with photovoltaic systems up to 6.6 kWp and includes 2 MPPT trackers, allowing optimal performance even with panels of different orientations or power levels.

Reliable Growatt battery storage

The included Growatt battery system provides a total capacity of 15.36 kWh (15,360 Wh). This single-phase storage solution integrates seamlessly with your solar installation.

The ARK 15.3L configuration is suitable for small businesses or agricultural applications with an annual energy consumption exceeding 11,000 kWh.

Connectivity and interfaces

The system communicates with other devices via the following interfaces:

• RS232

• USB

• WLAN

• CAN

Technical specifications

• Battery technology: Lithium

• Total weight: 210.25 kg

• Phases: 1

• Expandable system: Yes

• MPPT trackers: 2

• Output power: 3000 W

• Efficiency: 97%

• Switching time: 500 ms

• Dimensions (L × W × H): 650 × 260 × 1020 mm
