Growatt SPH10000TL3-BH-UP 10kW Hybrid Inverter with 20.4 kWh Solar Battery Storage Set

Growatt SPH10000TL3-BH-UP 10kW Hybrid Inverter with 20.4 kWh Solar Battery Storage Set

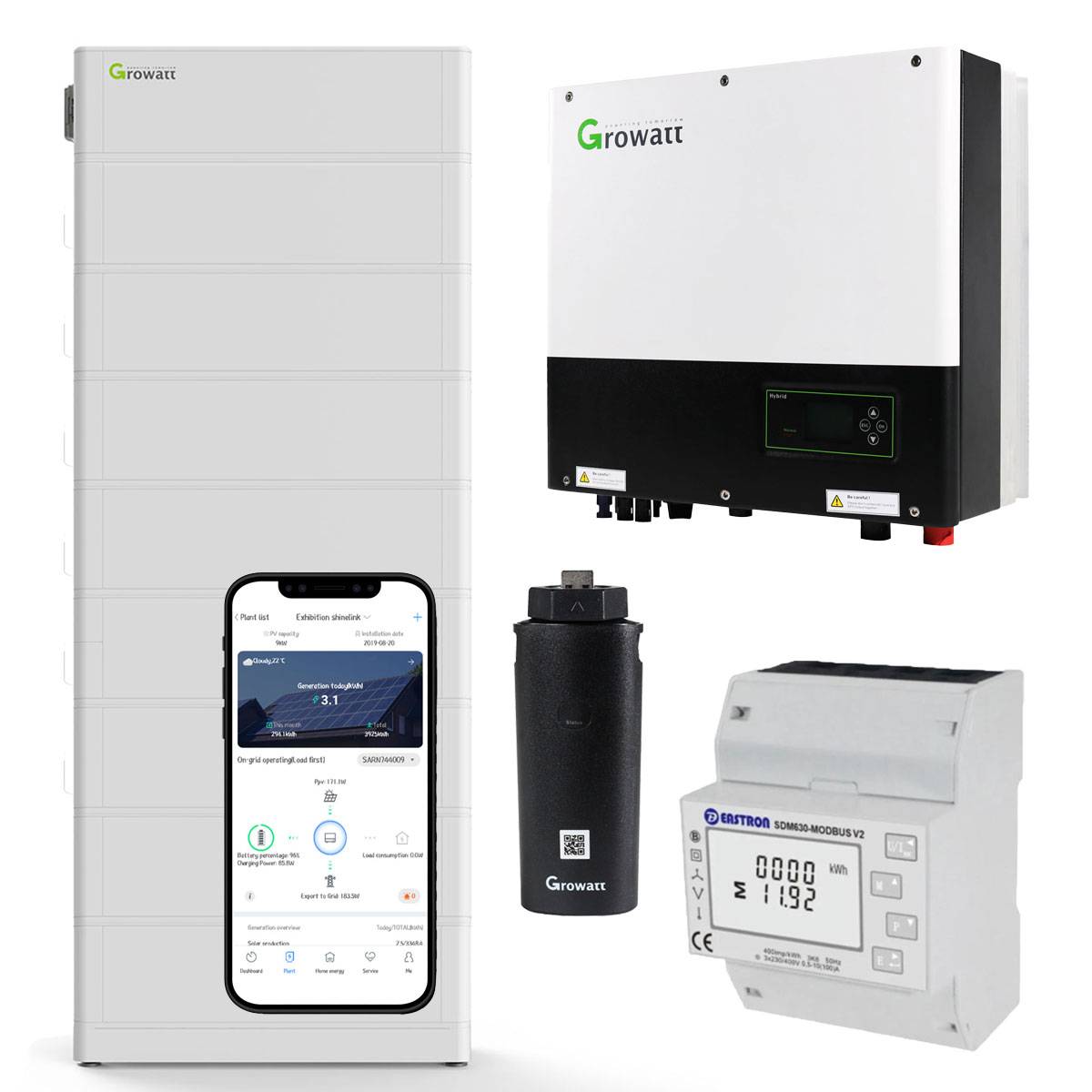

This bundle provides a complete solution for converting and storing solar energy. It includes the following components:

• 1 × Growatt SPH10000TL3-BH-UP 10kW three-phase solar hybrid inverter

• 8 × Growatt ARK 2.5H-A1 high-voltage batteries for SPA, SPH and MOD inverters

• 1 × Growatt ARK 2.5H-A2 base for high-voltage batteries

• 1 × Growatt ARK 2.5H-A2 high-voltage connection cable set for SPH

• 1 × Growatt HVC 60050-C2 high-voltage battery management system (BMS)

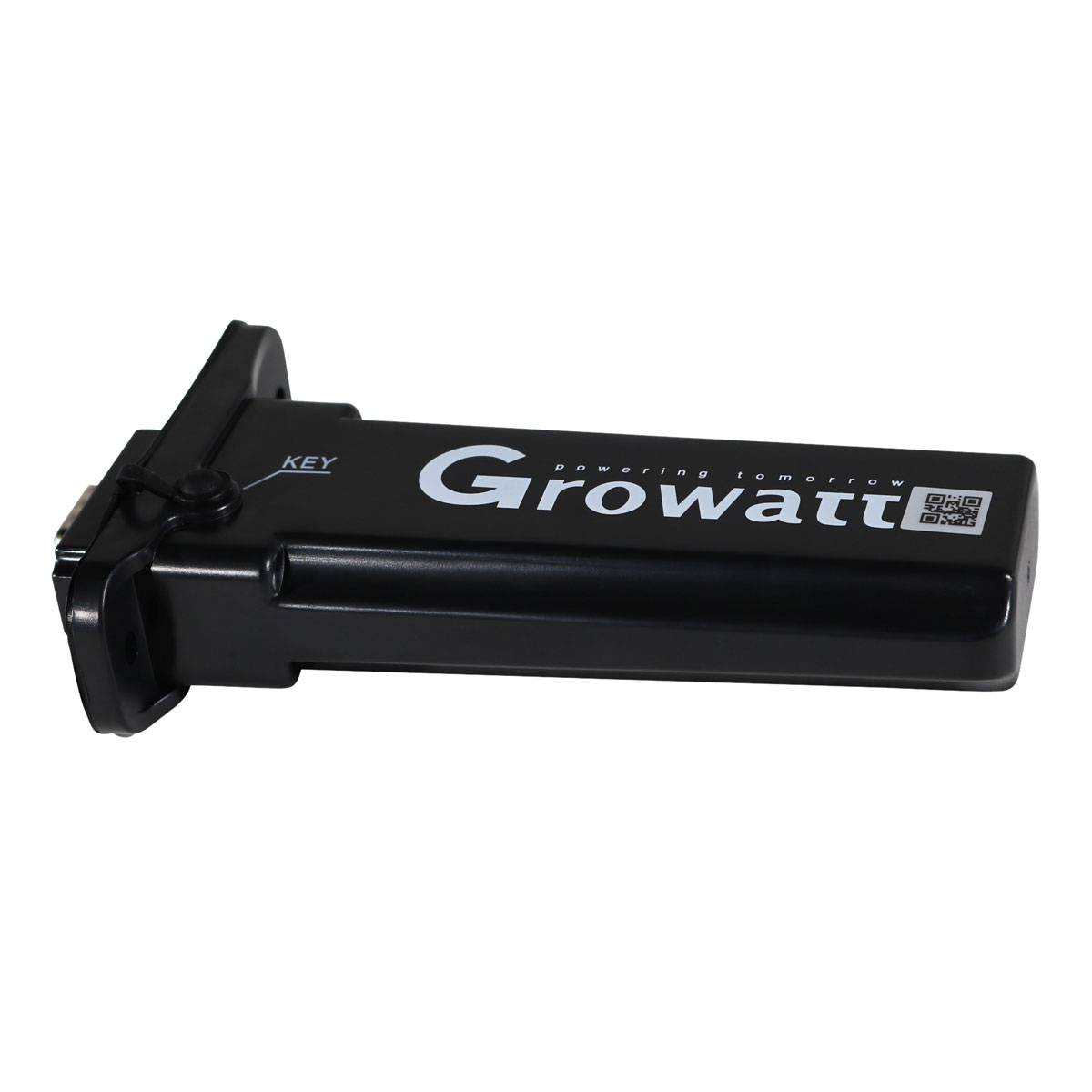

• 1 × Growatt Shine WiFi-X WiFi stick

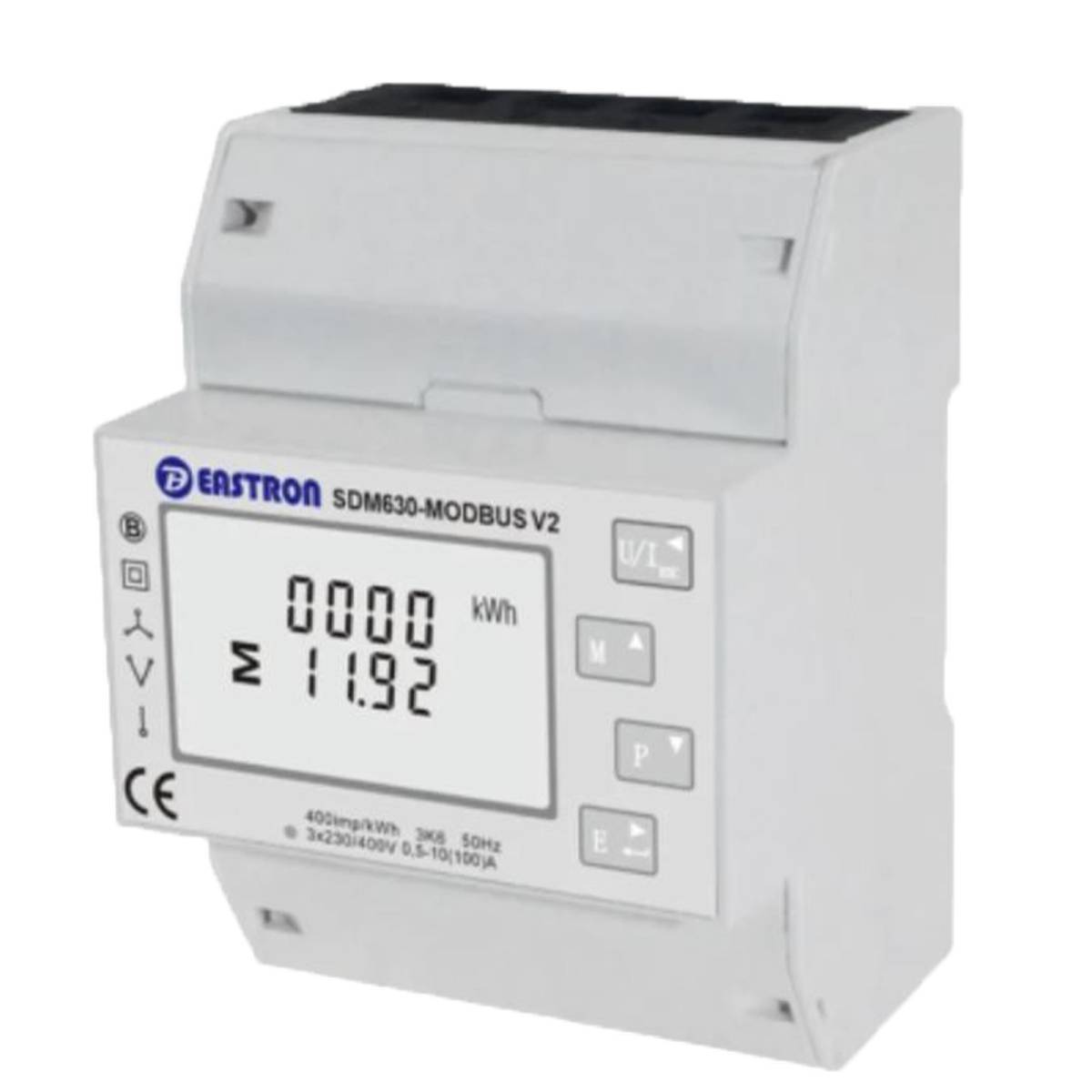

• 1 × Growatt Smart Meter TPM-E (3-phase)

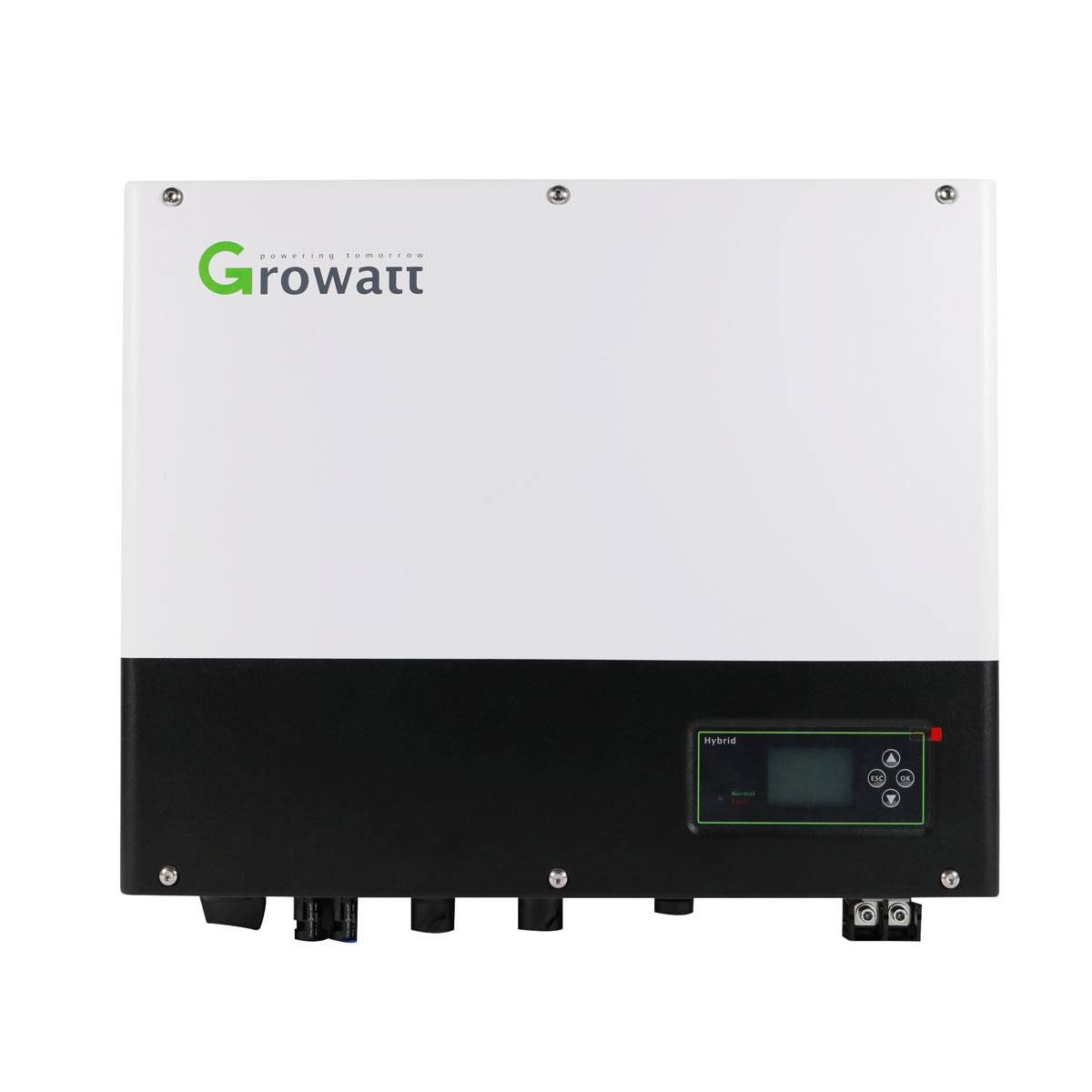

SPH10000TL3-BH-UP inverter performance

The SPH10000TL3-BH-UP is a three-phase hybrid inverter from Growatt designed to supply connected loads with energy from the solar battery as needed. It delivers a maximum output power of 10,000 W.

With a European efficiency of 97.5%, it ensures high-performance energy conversion.

The inverter is compatible with photovoltaic systems up to 15 kWp and features 2 MPPT trackers, ensuring optimal performance even when panels have different orientations or capacities.

Black start capability for backup power

The inverter is black start capable, meaning it can continue to supply power to connected backup loads during a grid outage using energy from the PV system or the connected battery.

High-capacity Growatt battery storage

The included Growatt battery system provides a total capacity of 20.48 kWh (20,480 Wh). This three-phase storage solution is designed for larger energy demands.

The ARK 20.4H configuration is suitable for small businesses or agricultural operations with annual energy consumption exceeding 11,000 kWh.

Connectivity and interfaces

The system integrates with other devices via the following interfaces:

• RS232

• RS485

• CAN

• USB

• WLAN

Technical specifications

• Battery technology: Lithium

• Total weight: 280.4 kg

• Phases: 3

• Expandable system: Yes

• MPPT trackers: 2

• Output power: 10,000 W

• Efficiency: 97.5%

• Switching time: 10 ms

• Dimensions (L × W × H): 610 × 250 × 1770 mm
