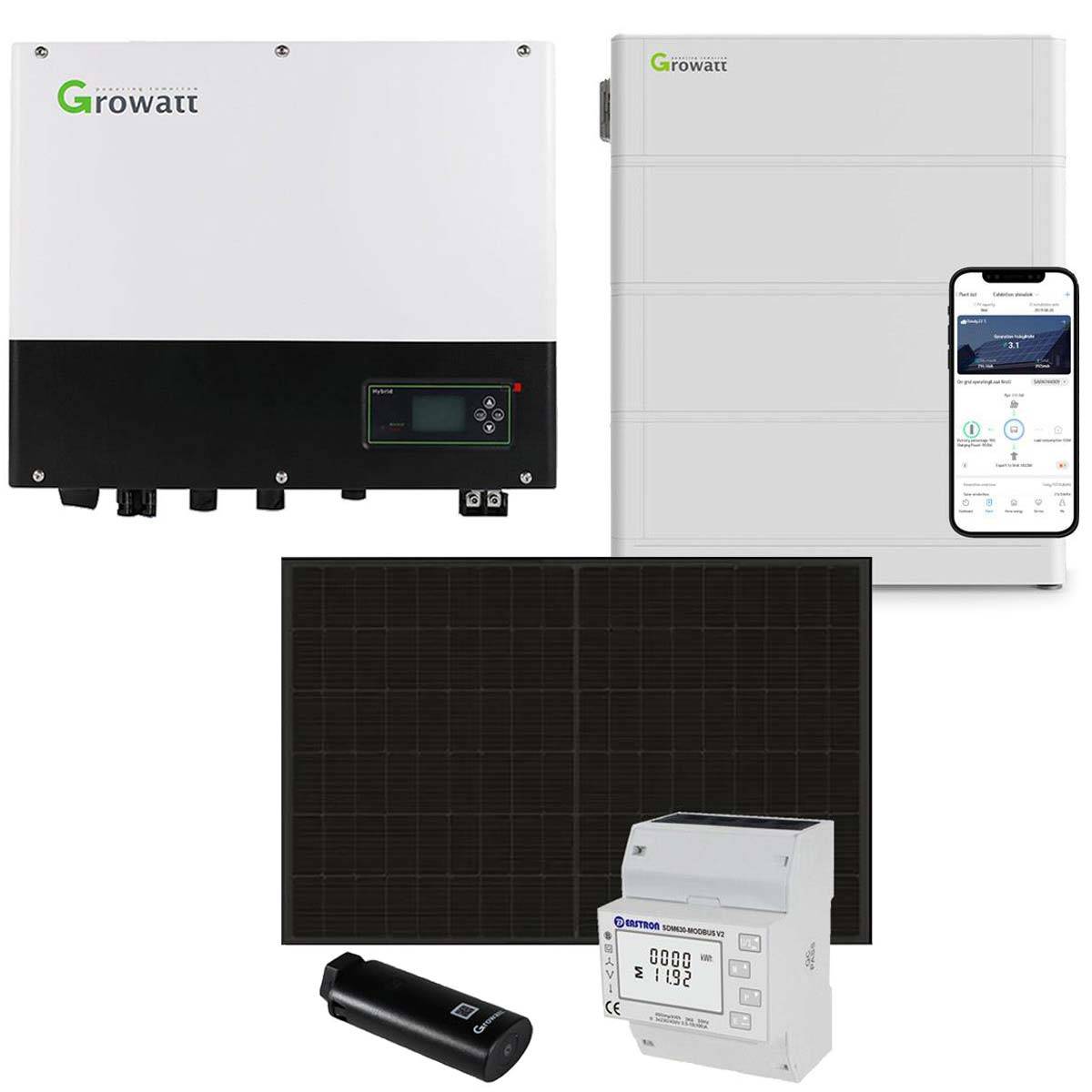

Growatt 7 kWp Complete PV System with Glass-Glass Solar Panels and 7.6 kWh Battery Storage

Growatt 7 kWp Complete PV System with Glass-Glass Solar Panels and 7.6 kWh Battery Storage

This set allows you to install a complete photovoltaic system, enabling you to generate, store, and use your own solar energy while reducing dependence on the local grid and energy market changes.

7 kWp solar capacity with high-efficiency panels

The system includes 17 × Sunpro TopCon 430W Full Black glass-glass solar panels, providing a total installed capacity of approximately 7 kWp.

Each panel delivers up to 430 W and features a glass-glass construction, improving system performance and durability. The module efficiency reaches 22%.

The monocrystalline cell structure ensures high efficiency and performance, while the robust design offers strong resistance to temperature variations, humidity, and mechanical stress.

Battery storage system overview

The included Growatt battery system provides a total capacity of 7,600 Wh (7.6 kWh).

This configuration is suitable for a household of four people, including higher consumption scenarios such as an electric vehicle or heat pump, with an estimated annual consumption below 9,000 kWh.

Hybrid inverter performance

The system is powered by the Growatt SPH7000TL3-BH-UP hybrid inverter, designed to increase self-consumption and reduce reliance on the grid.

• Maximum output power: 7,000 W

• European efficiency: 97.4%

• Compatible with PV systems up to 10.5 kWp

• 2 MPPT trackers for optimized performance

Backup capability

The inverter is black start capable, meaning it can continue supplying power to connected loads during a grid outage using energy from the PV system or battery.

Connectivity and interfaces

The system communicates with other devices via:

• RS232

• RS485

• CAN

• USB

• WLAN

Package contents

A compatible smart meter is included in the bundle.

Please note: Solar cables required for installation are not included, as the required cable length depends on the specific installation.

Technical specifications

• Battery technology: Lithium

• Phases: 3

• Switching time: 10 ms

• Efficiency: 97.4%

• Output power: 7,380 W

• Total weight: 533.47 kg

• Dimensions (L × W × H): 610 × 250 × 770 mm
