Growatt 6 kWp Complete PV System with Glass-Glass Solar Panels and 7.6 kWh Battery Storage

Growatt 6 kWp Complete PV System with Glass-Glass Solar Panels and 7.6 kWh Battery Storage

This bundle allows you to install a complete photovoltaic system, giving you the ability to generate, store, and use your own solar energy while reducing dependence on the grid.

6 kWp solar capacity with high-efficiency panels

The system includes 14 × Sunpro TopCon 430W Full Black glass-glass solar panels, providing a total installed capacity of approximately 6 kWp.

Each panel delivers up to 430 W and features a durable glass-glass construction, improving long-term performance and reliability. The module efficiency reaches up to 22%.

The monocrystalline cell structure ensures high efficiency, while the robust build offers strong resistance to temperature variations, humidity, and mechanical stress.

Integrated Growatt battery storage

The included Growatt battery system offers a total capacity of 7.6 kWh (7,600 Wh), allowing you to store excess solar energy for later use.

This configuration is suitable for a household of four people, including scenarios with higher consumption such as a heat pump or electric vehicle, assuming an annual consumption below 9,000 kWh.

Hybrid inverter performance

The system is powered by the Growatt SPH6000TL3-BH-UP, a three-phase hybrid inverter designed to increase self-consumption and energy independence.

• Maximum output power: 6,000 W

• European efficiency: 98.3%

• Compatible with PV systems up to 9 kWp

• 2 MPPT trackers for optimized performance

Connectivity and interfaces

The system supports integration with other devices via:

• RS232

• RS485

• CAN

• USB

• WLAN

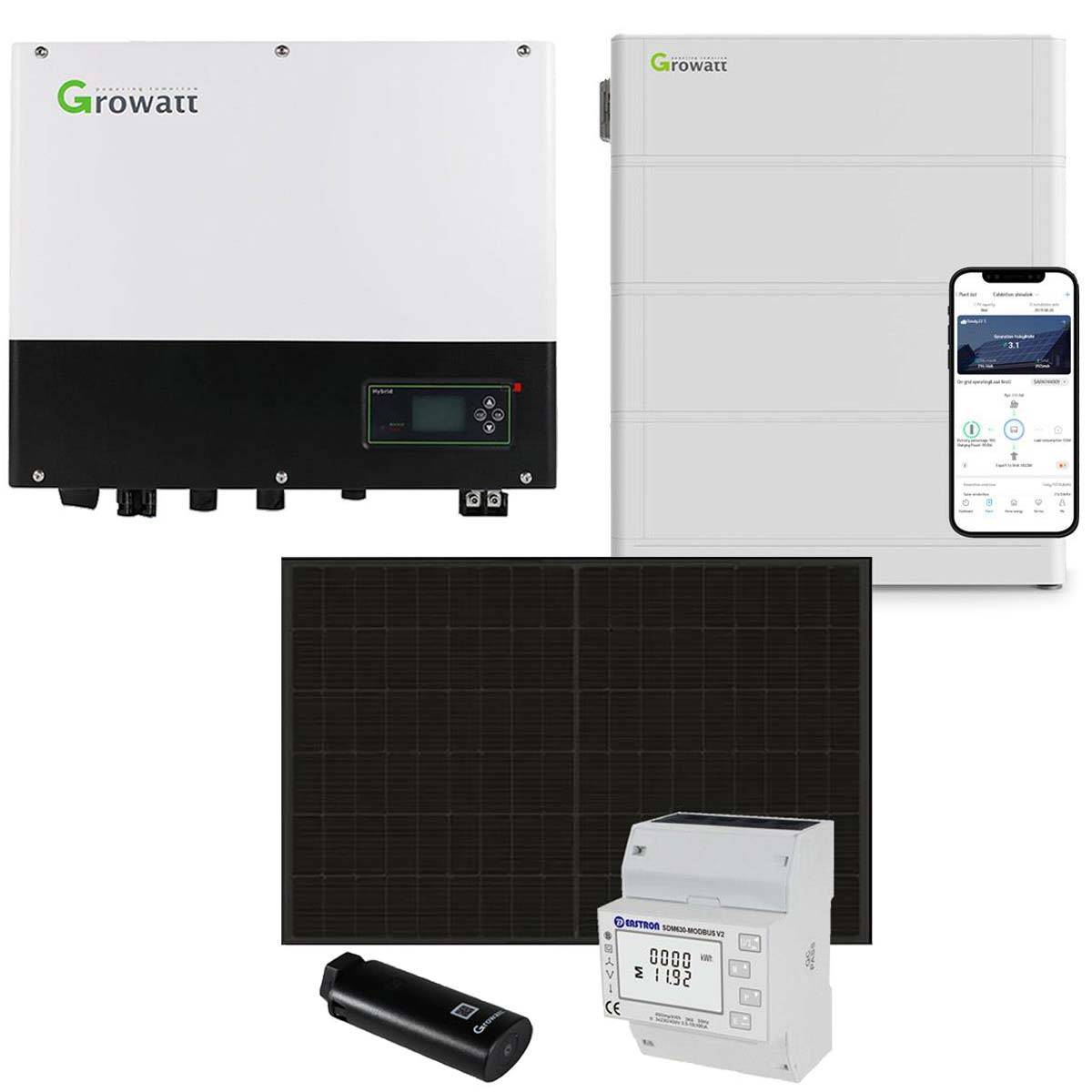

What’s included in the package

• 1 × Growatt SPH6000TL3-BH-UP 6kW three-phase hybrid inverter

• 1 × Growatt ShineWiFi-X WiFi stick

• 1 × Growatt HVC 60050-C2 high-voltage battery management system (BMS)

• 1 × Growatt ARK 2.5H-A2 base for high-voltage batteries

• 3 × Growatt ARK 2.5H-A1 high-voltage battery modules

• 1 × Growatt ARK 2.5H-A2 high-voltage connection cable set

• 14 × Sunpro TopCon 430W Full Black glass-glass solar panels

A compatible smart meter is included in the package.

Please note: Solar cables required for installation are not included, as the required length depends on the specific installation.

Technical specifications

• Battery technology: Lithium

• Phases: 3

• Switching time: 10 ms

• Output power: 6150 W

• Efficiency: 98.3%

• Total weight: 503.57 kg

• Dimensions (L × W × H): 610 × 250 × 770 mm
