Growatt 10 kWp Complete PV System with Glass-Glass Solar Panels and 12.8 kWh Battery Storage

Growatt 10 kWp Complete PV System with Glass-Glass Solar Panels and 12.8 kWh Battery Storage

This complete set allows you to install a full photovoltaic system, giving you the ability to generate, store, and use your own solar energy while reducing dependence on the grid.

10 kWp solar capacity with high-efficiency panels

The system includes 24 × Sunpro TopCon 430W Full Black glass-glass solar panels, enabling a total installed capacity of approximately 10 kWp.

Each panel delivers up to 430 W and features a glass-glass construction, which improves durability and long-term performance. The module efficiency reaches up to 22%.

Thanks to the monocrystalline cell structure and robust build, the panels offer strong resistance to temperature variations, humidity, and mechanical stress, ensuring reliable energy production even in demanding conditions.

Integrated Growatt battery storage

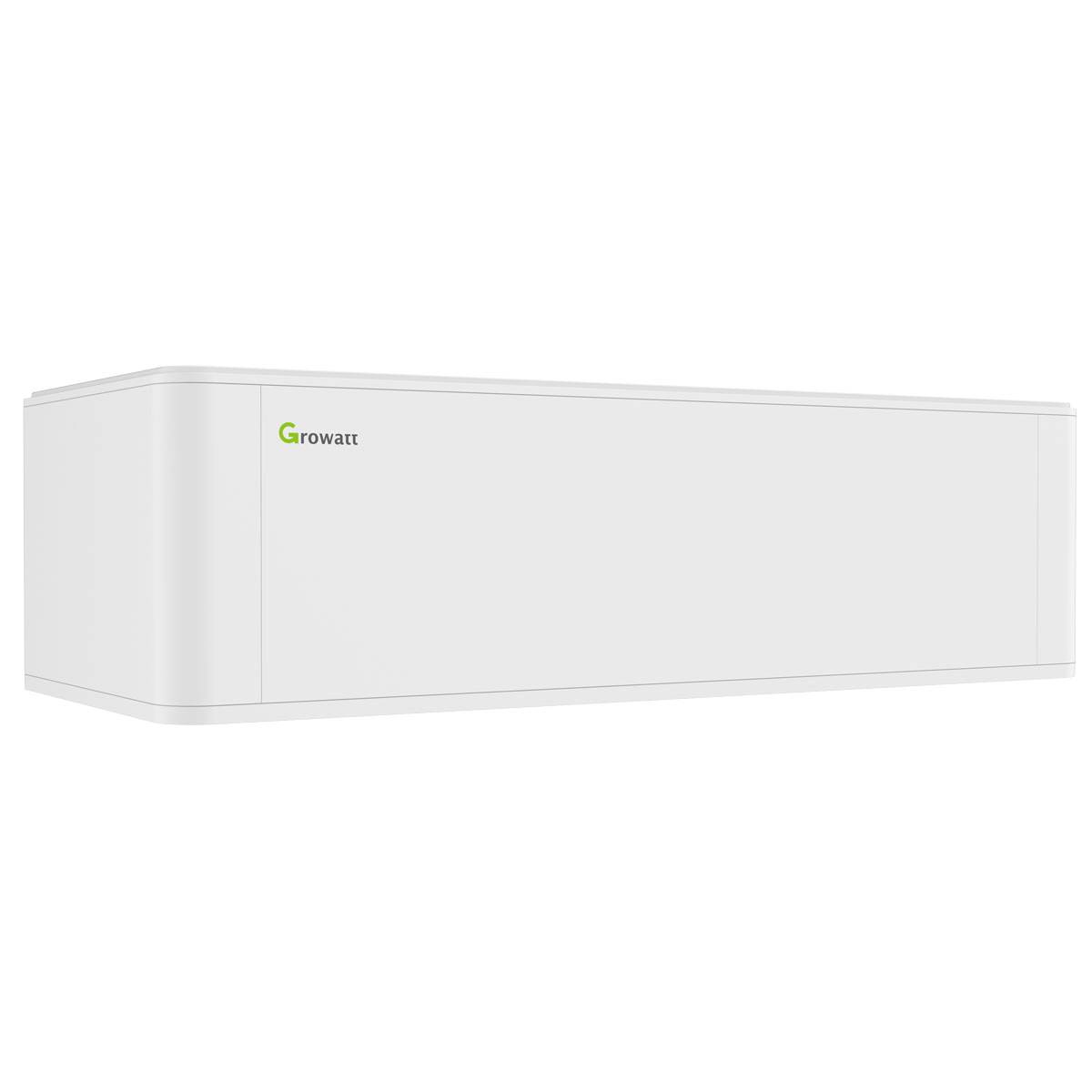

The included Growatt battery system provides a storage capacity of 12.8 kWh (12,800 Wh), allowing you to store excess solar energy for later use.

The ARK 12.8H configuration is suitable for users with annual consumption above 11,000 kWh, such as small businesses or high-demand households.

High-performance hybrid inverter

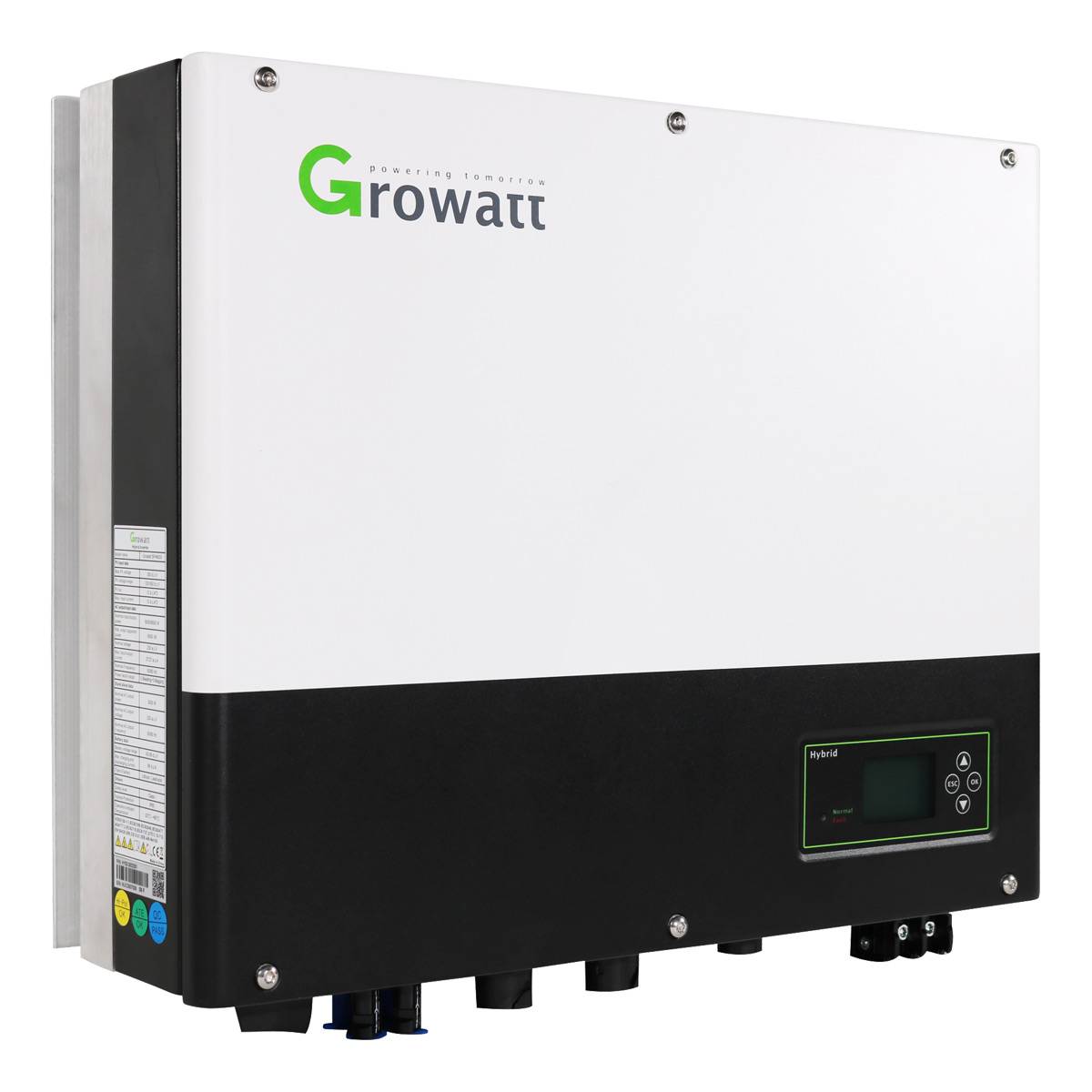

The system is powered by the Growatt SPH10000TL3-BH-UP, a three-phase hybrid inverter designed to maximize self-consumption and energy independence.

• Maximum output power: 10,000 W

• European efficiency: 97.4%

• Compatible with PV systems up to 15 kWp

• 2 MPPT trackers for optimized performance

Backup power capability

The inverter supports black start functionality, meaning it can continue supplying power to connected backup loads during grid outages using energy from the solar panels or battery.

Connectivity and interfaces

The system communicates with other devices via:

• RS232

• RS485

• CAN

• USB

• WLAN

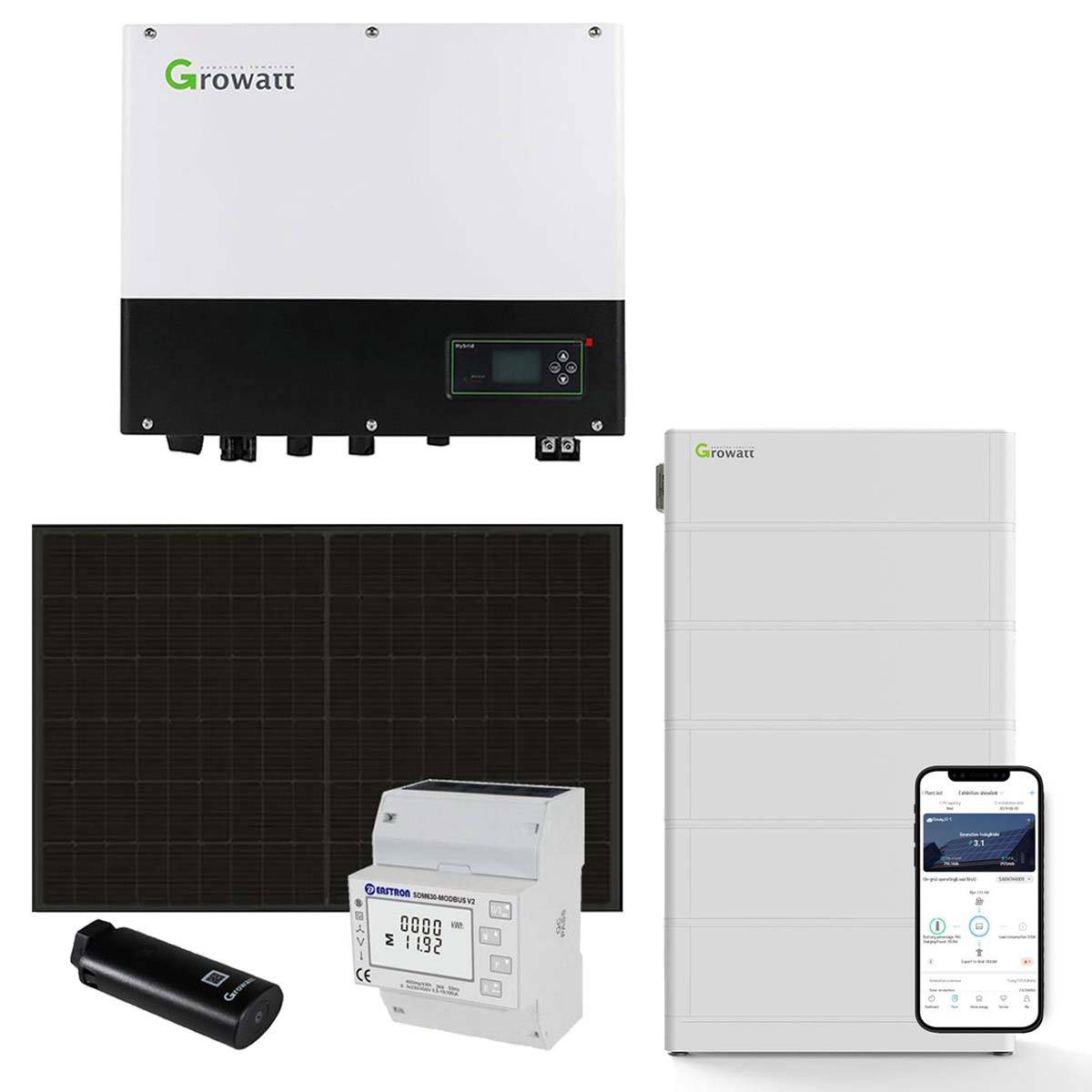

What’s included in the package

• 1 × Growatt SPH10000TL3-BH-UP 10kW three-phase hybrid inverter

• 1 × Growatt ShineWiFi-X WiFi stick

• 1 × Growatt HVC 60050-C2 high-voltage battery management system (BMS)

• 1 × Growatt ARK 2.5H-A2 base for high-voltage batteries

• 5 × Growatt ARK 2.5H-A1 high-voltage battery modules

• 1 × Growatt ARK 2.5H-A2 high-voltage connection cable set

• 24 × Sunpro TopCon 430W Full Black glass-glass solar panels

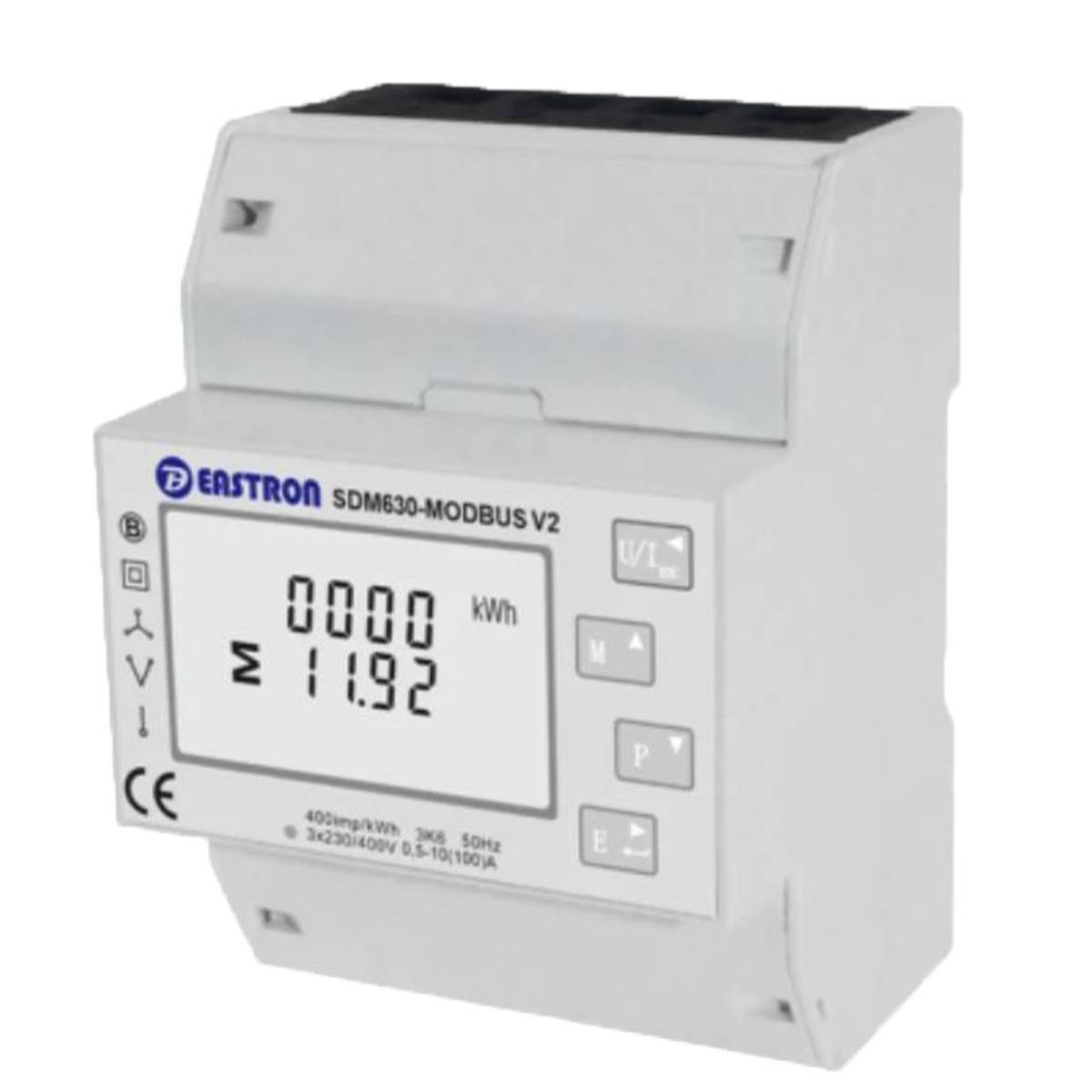

A compatible smart meter is included in the package.

Please note: Solar cables required for installation are not included, as the necessary length depends on the specific installation conditions.

Technical specifications

• Battery technology: Lithium

• Phases: 3

• Switching time: 10 ms

• Efficiency: 97.4%

• System power: 10,250 W

• Total weight: 813.95 kg

• Dimensions (L × W × H): 610 × 250 × 1170 mm
