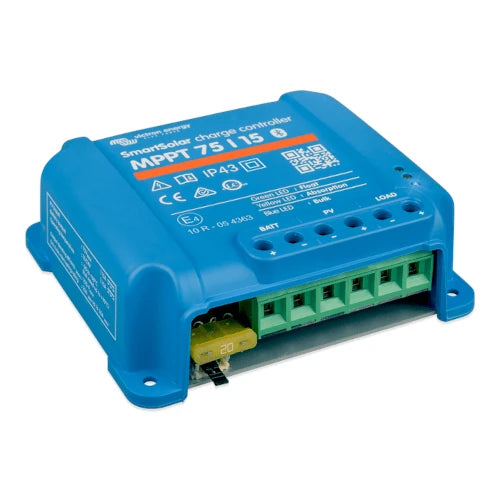

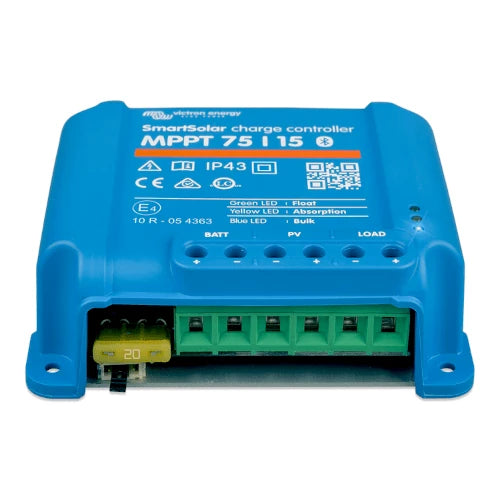

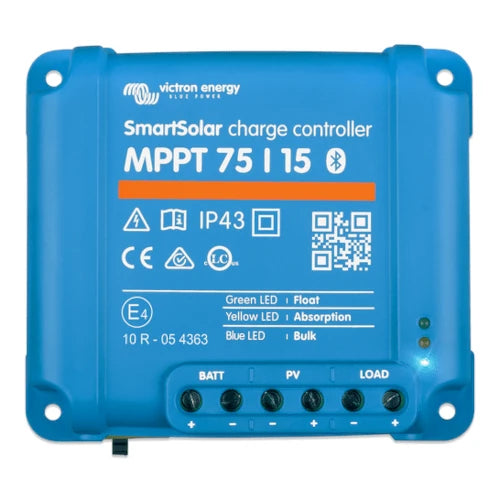

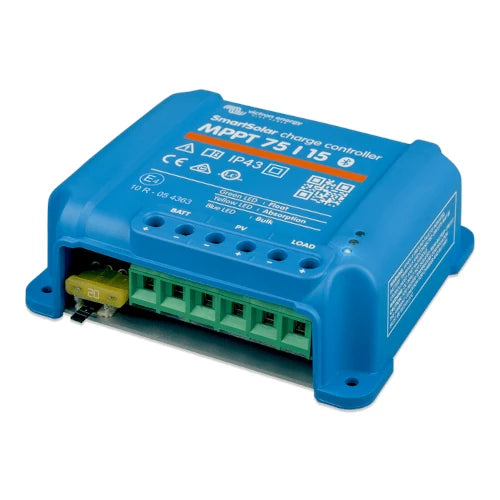

Victron Smartsolar MPPT 75/15 15A 12V 24V solar charge controller

The Smartsolar 75/15 from Victron Energy (MPN SCC075015060R) is an MPPT solar charge controller with a maximum charging current of 15A for charging 12V and 24V batteries. Unlike the Bluesolar 75/15, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongle. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control GX or the MPPT Control.

The integrated Bluetooth in the SmartSolar series is the wireless solution for setting up, monitoring, and updating the controller using Apple and Android smartphones, tablets, or other devices. The optional MPPT WireBox-S 75-10/15 from Victron Energy is the ideal addition to your SmartSolar charge controller. It securely covers the cable entries and connection terminals of the controller, protecting them from external influences and contact.

The most important technical features at a glance

• 15A max. charging current, suitable for 12V and 24V batteries
• nominal PV power for 12V systems: 220W
• nominal PV power for 24V systems: 440W
• 15A load output
• high peak efficiency of 98%
• freely programmable battery charging algorithm (via the free Victron Connect APP)
• Programmable light dimming functions (via the free Victron Connect app)
• Ultra-fast maximum power point tracking
• max. PV open-circuit voltage: 75V
• Charging algorithm: multi-stage, adaptive
• integrated Bluetooth module

Ultra-fast maximum power point tracking

Especially when the sky is overcast and the light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

intelligent load output

Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a specified voltage value. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife.
The load output is short-circuit-proof.

Battery Life: intelligent battery management

If the solar charge controller is unable to charge the battery to its full capacity within one day, the battery status constantly switches back and forth between "partially charged" and "end of discharge." This operating mode (no regular full charging) damages a lead-acid battery within a few weeks or months.

The Battery Life Algorithm monitors the battery's state of charge and, if necessary, raises the threshold value for disconnecting the load day by day (i.e., the load is disconnected earlier) until the energy gained is sufficient to charge the battery to almost 100%. From this point on, the threshold value for disconnecting the load is modulated so that the charge reaches almost 100% about once a week.

Scope of delivery:

1x Victron EnergySCC075015060R Smartsolar MPPT 75/15 15A 12V 24V solar charge controller
1x Operating instructions

Specifications

• Ambient temperature: -30°C - +60°C
• Battery type adjustable: Support for all common battery types
• Category name: Solar charge controller
• Charge controller type: MPPT
• Humidity: max. 95 % RF (non-condensing)
• Manufacturer: Victron Energy
• Number of charging outputs: 1
• Own consumption in standby: 10mA
• Product Type: MPPT charge controller 15A for 12V and 24V batteries with integrated Bluetooth and extensive setting options as well as an intelligent load output.
• Protection type: IP43 (electronic components) IP22 (connection area)
• Protective functions: battery polarity reversal Fuse external, output short circuit, overtemp.
• Solar module current (max.): 15A

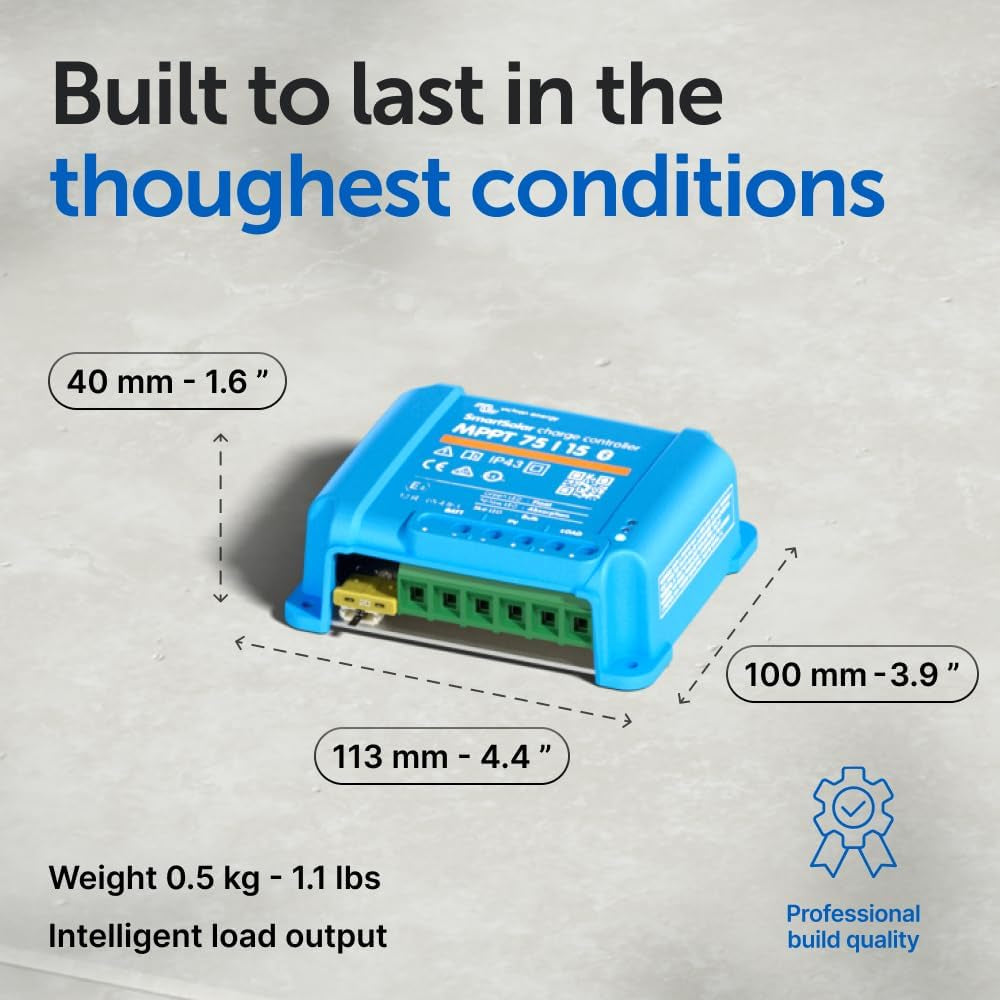

• Weight: 0,5 kg
• ean: 8719076040804
• mpn: SCC075015060R
