SolaX Balcony Solar System X1-Mini G4 800W with Solar Panels and WiFi

SolaX Balcony Solar System X1-Mini G4 800W with Solar Panels and WiFi

The X1-Mini G4 0.8kW is a single-phase inverter designed for compact balcony solar systems. It is ideal for installations on balconies, garages, garden houses, or partially shaded areas. The system helps increase self-consumption of solar energy while reducing dependence on the grid and rising electricity costs.

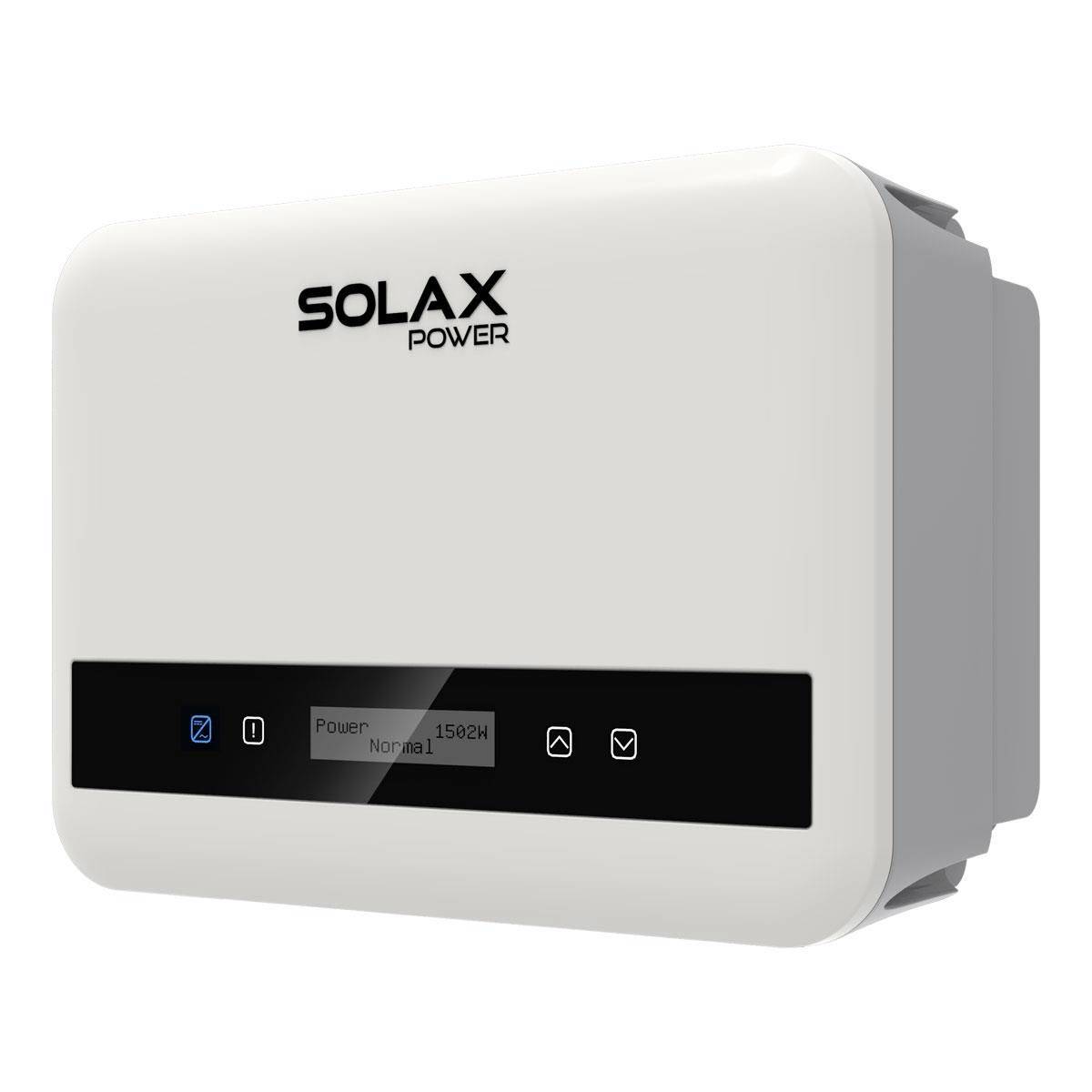

SolaX inverter performance

The SolaX X1-Mini G4 inverter delivers a maximum output power of 800 W and is compatible with photovoltaic systems up to 1.6 kWp.

It offers a maximum efficiency of 98.0% and a European efficiency of 96.0% under typical conditions.

Optimized performance with MPPT

The inverter includes 1 MPPT tracker, ensuring the system consistently operates at its optimal point for maximum energy production.

Smart connectivity and interfaces

The inverter supports the following communication interfaces:

• USB

• RS485

• DRM

TopCon 450W solar panels

The included TopCon 450W solar panels feature monocrystalline cells and a durable construction designed for long-term performance. They provide reliable energy production even under demanding environmental conditions.

SolaX Pocket WiFi 3.0 Stick

The SolaX Pocket WiFi 3.0 Stick enables wireless connection to the internet, allowing remote monitoring via the SolaX platform. Installation is simple with plug-and-play functionality.

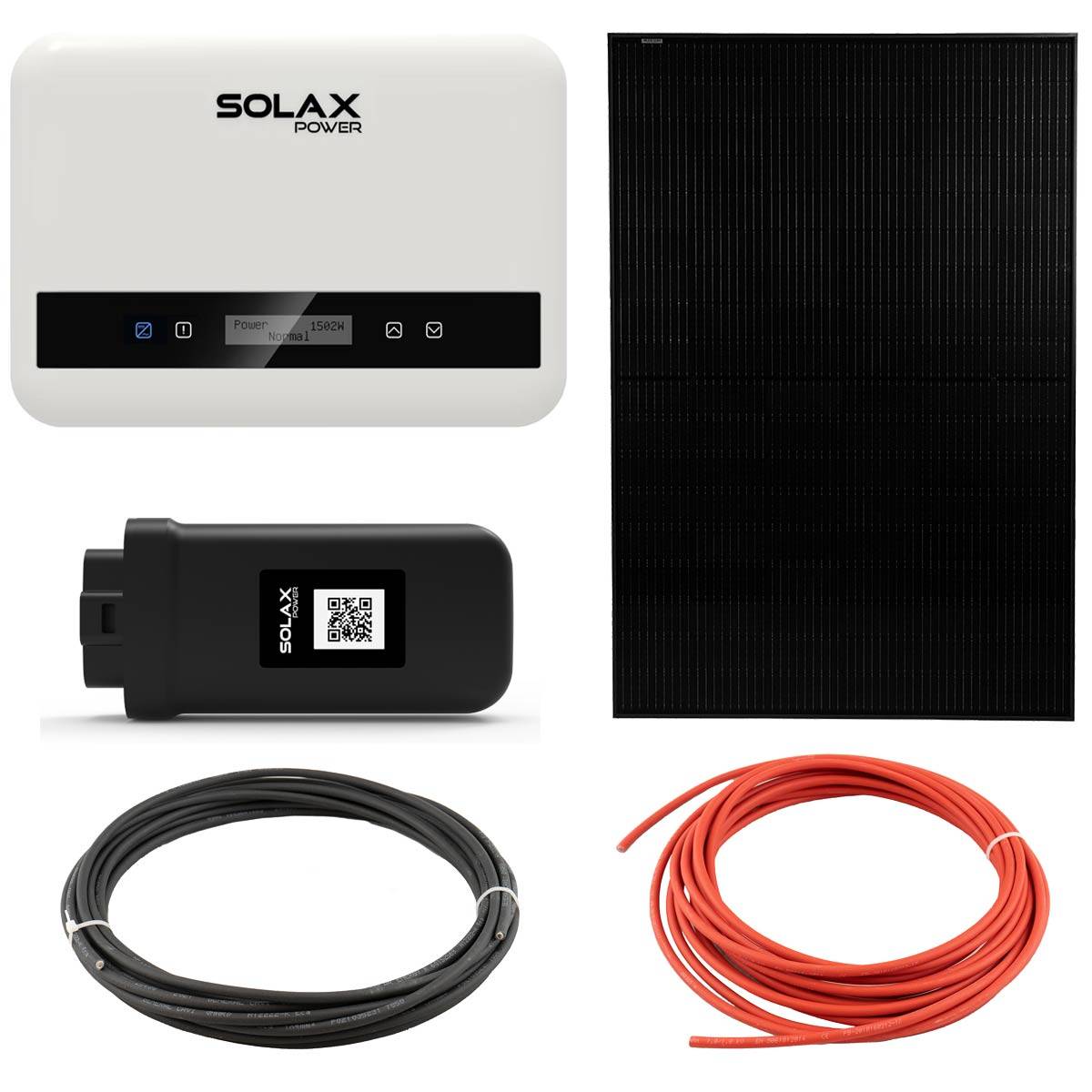

Package contents

• 1 × SolaX X1-Mini G4 0.8kW single-phase inverter

• 1 × SolaX Pocket WiFi 3.0 Stick

• 2 × TopCon 450W solar panels

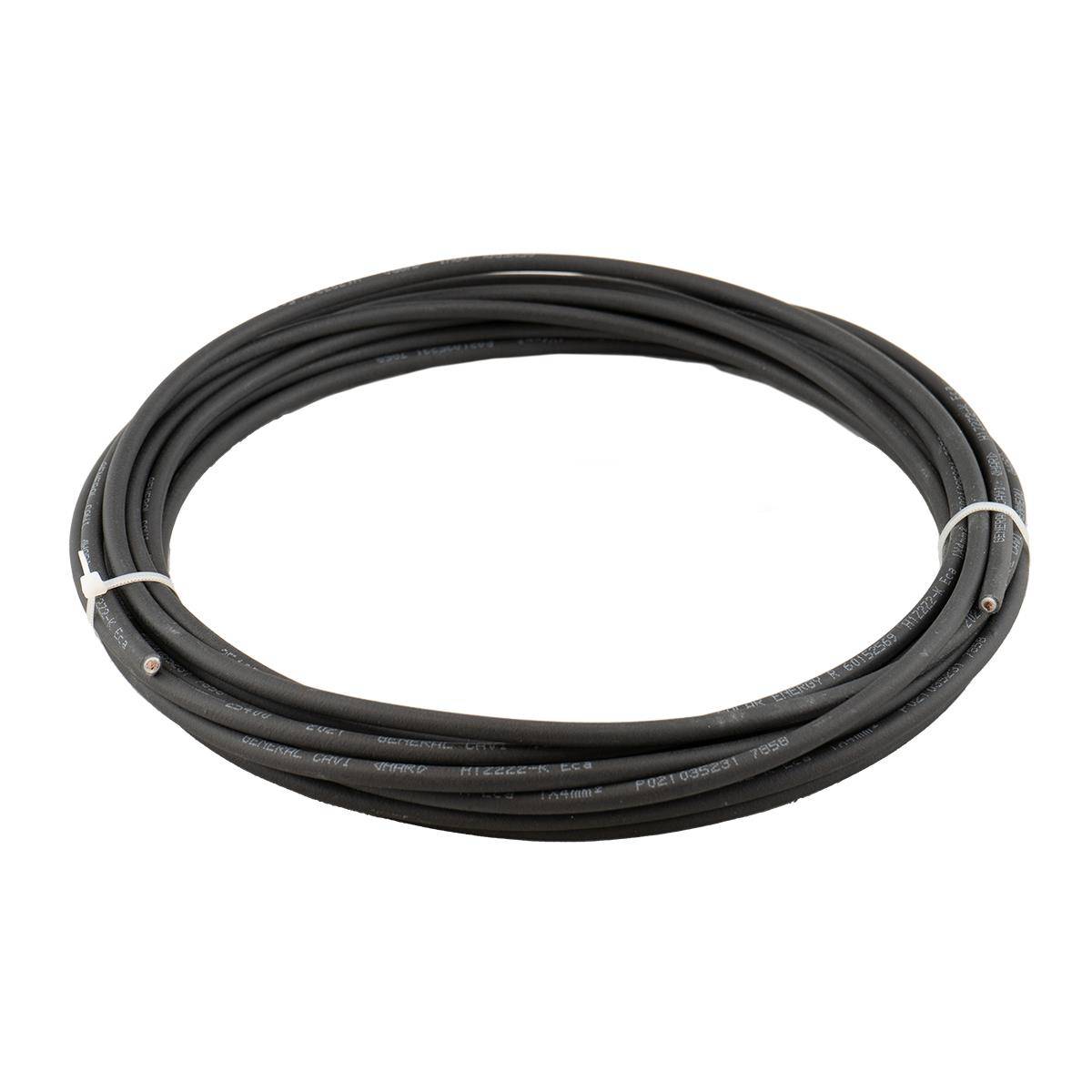

• 15 m Solar cable H1Z2Z2-K 1×4 mm² (black)

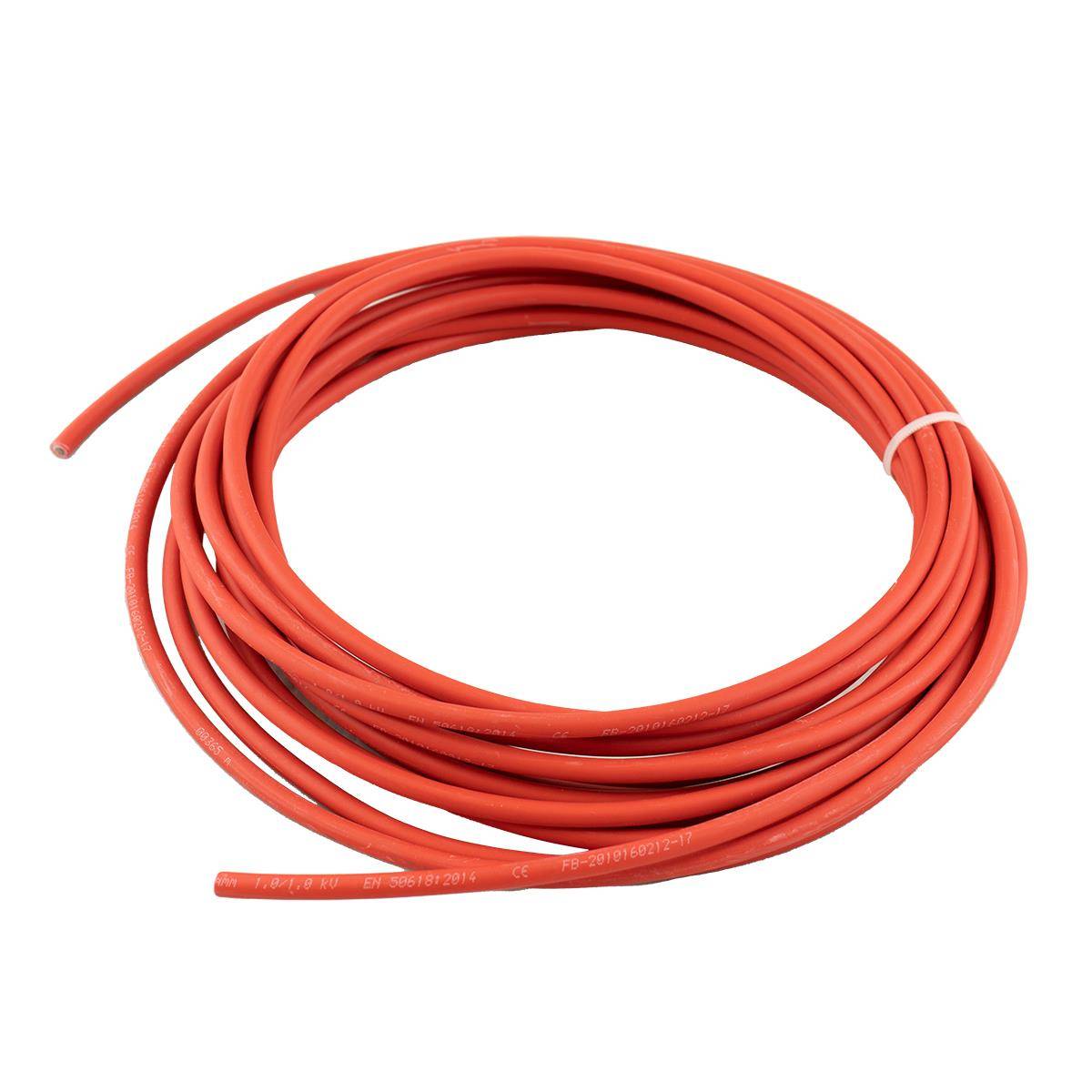

• 15 m Solar cable H1Z2Z2-K 1×4 mm² (red)

• 2 × MC4 connector sockets (4–6 mm²)

• 2 × MC4 connector plugs (4–6 mm²)

Simplified registration process

Recent regulatory changes have simplified the installation process for balcony solar systems. In many cases, only registration in the relevant national database is required, without additional approval from the grid operator. This makes installation easier, including for tenants.

Technical specifications

• Weight: 50 kg

• Output power: 800 W

• Phases: 1

• MPPT trackers: 1

• Efficiency: 96%

• Dimensions (L × W × H): 1722 × 1134 × 30 mm
